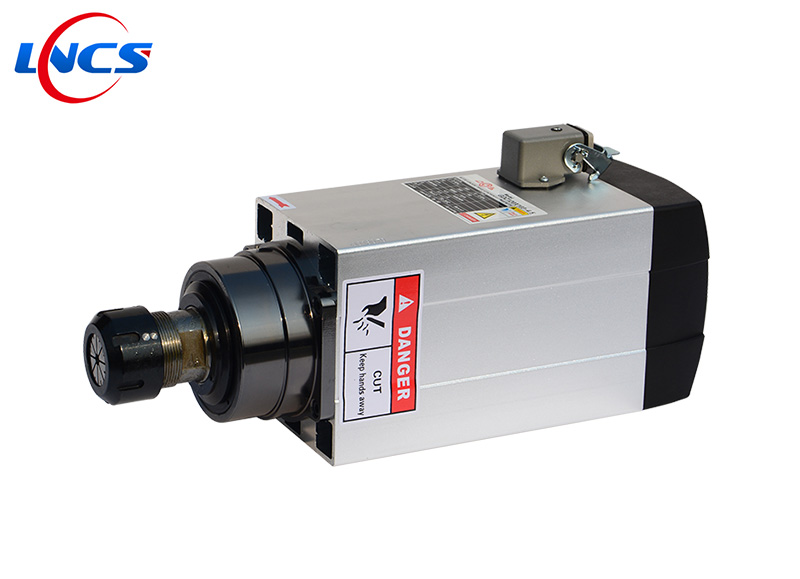

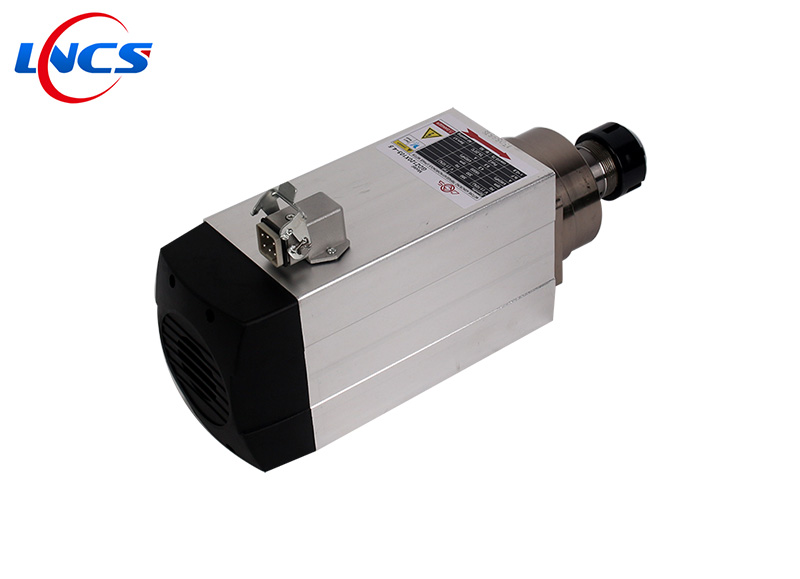

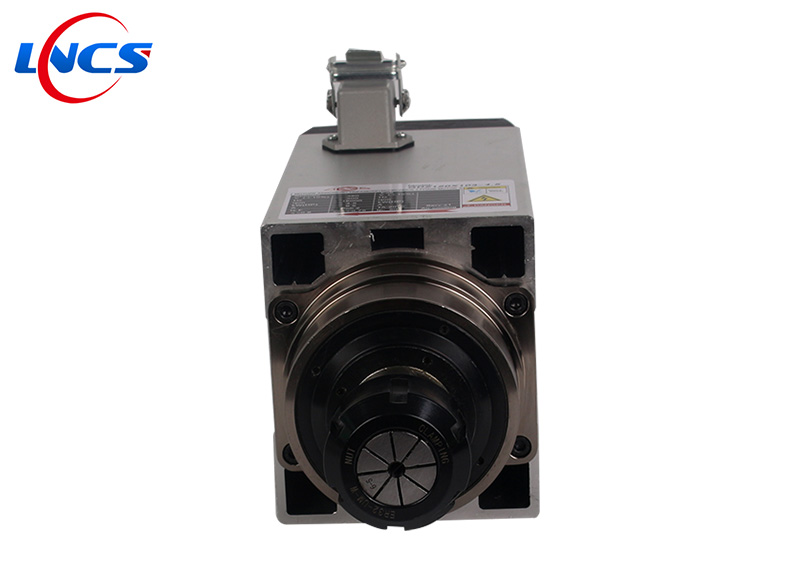

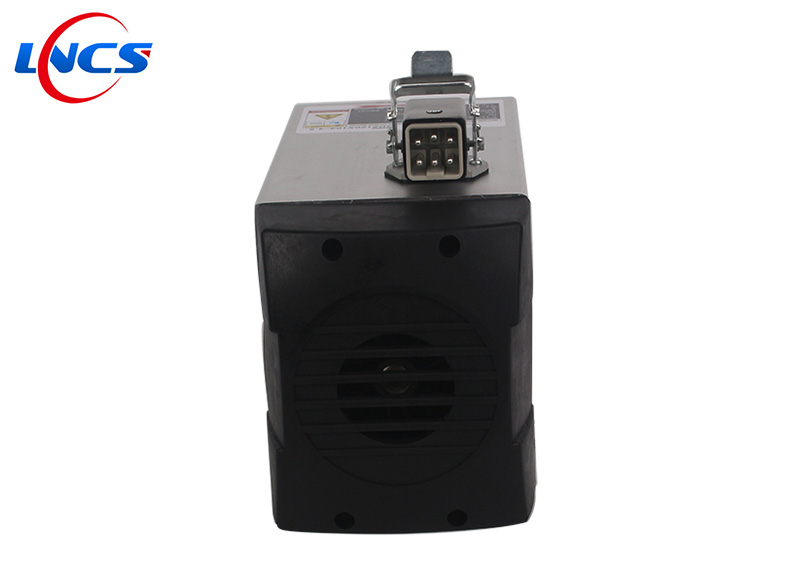

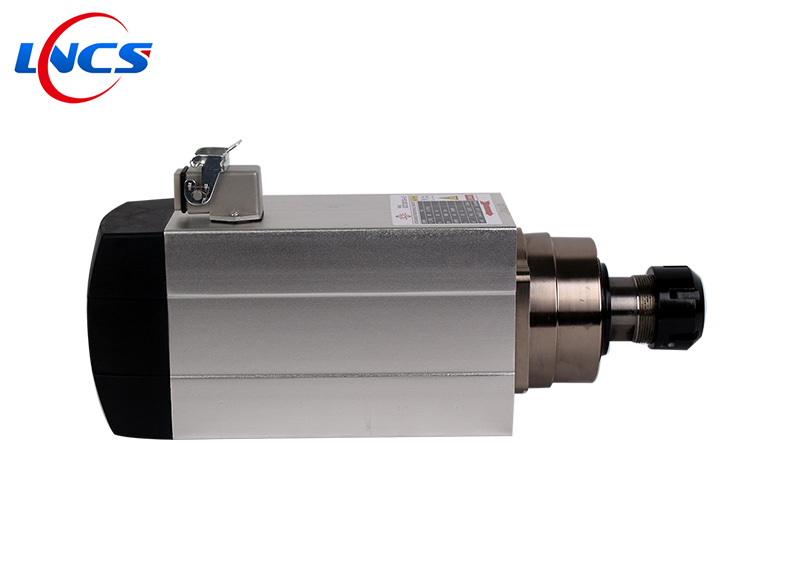

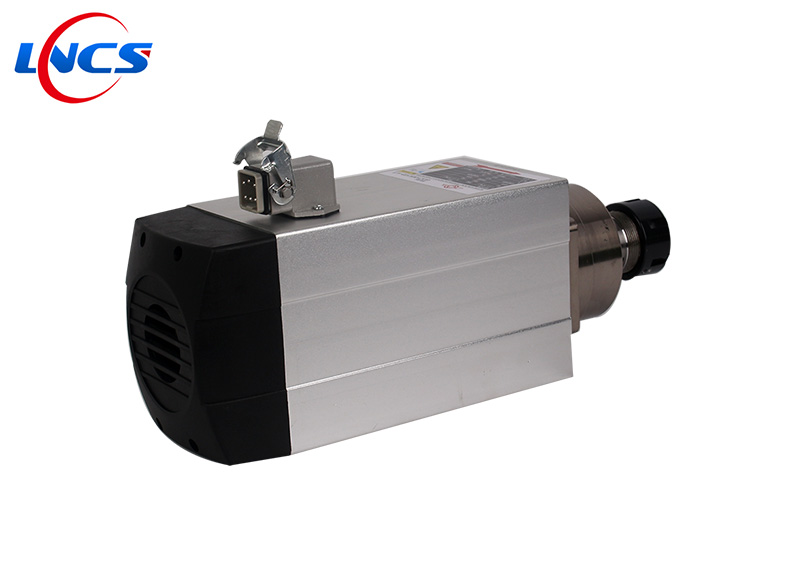

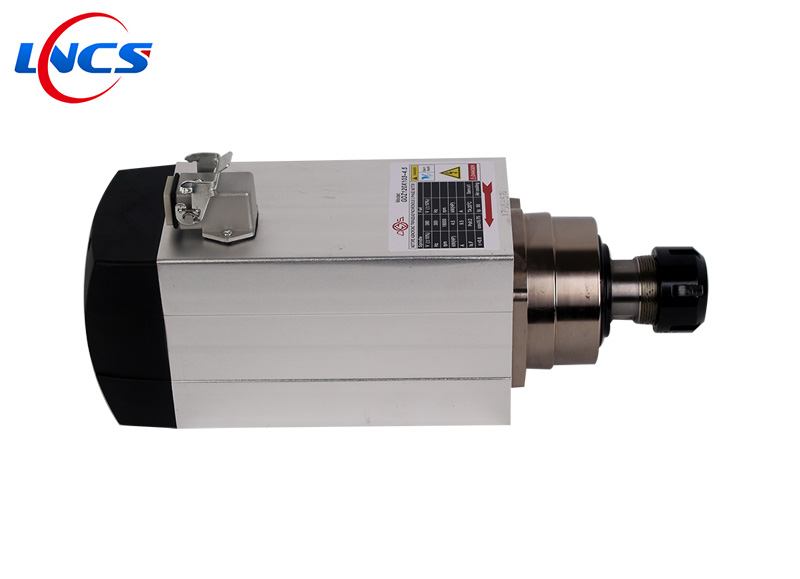

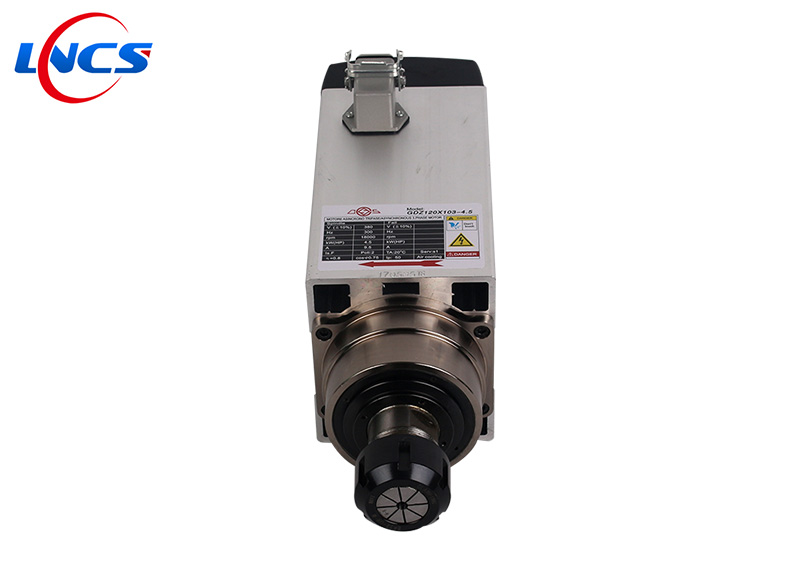

GDZ120103-4.5 4.5KW Air cooled Spindle

    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle
    • GDZ120103-4.5 4.5KW Air cooled Spindle

Product Details


Model No

GDZ120*103-4.5

Brand Name

CHANGSHENG

Power

4.5KW

Speed(R/Min)

18000RPM

Frequency

300HZ

Voltage

380V/220V

Current

9.5A/16.5A

ColletER32

Lubrication

Grease

Cooling Type

Air Cooling

Bearing Type2*7008 P4+2*7004c P4

Warranty Period

Bearings for six month, other parts for one year

Application

Be used in internal and external grinding, precision engraving, CNC drilling, milling equipments, edge bander and so on.

Certification

ISO9001, CE, SGS, ROHS
