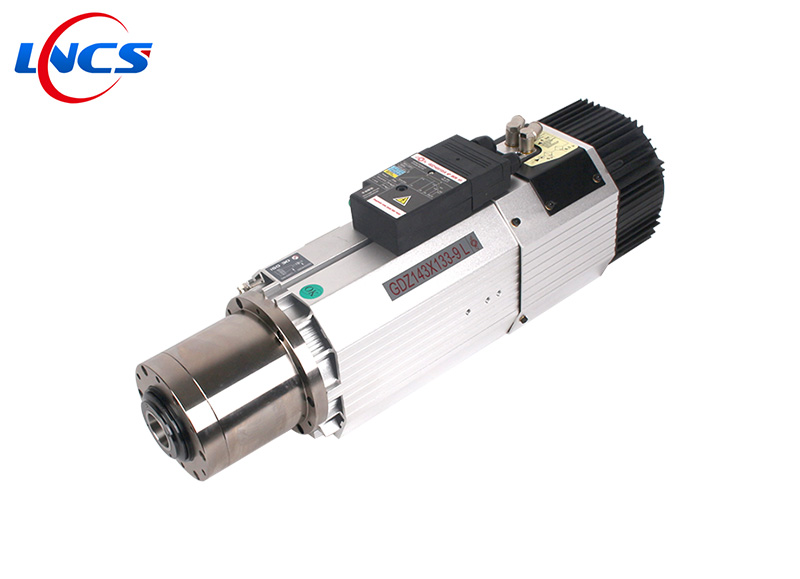

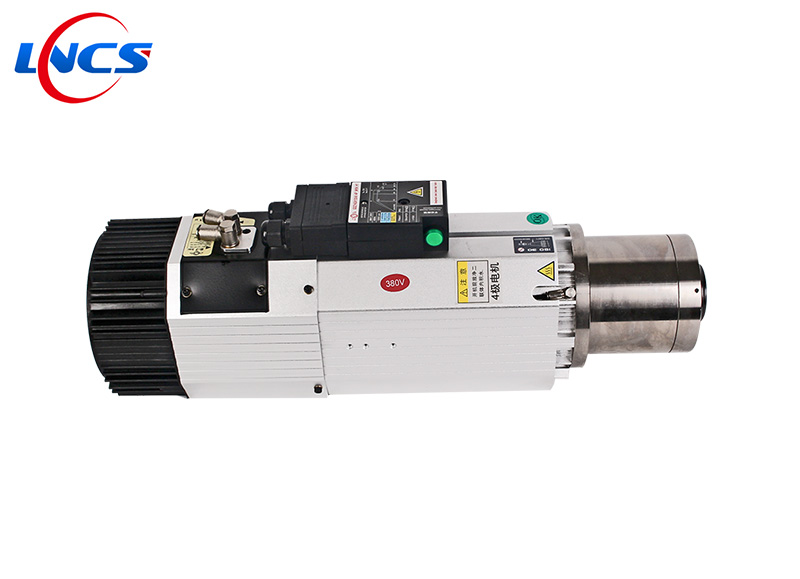

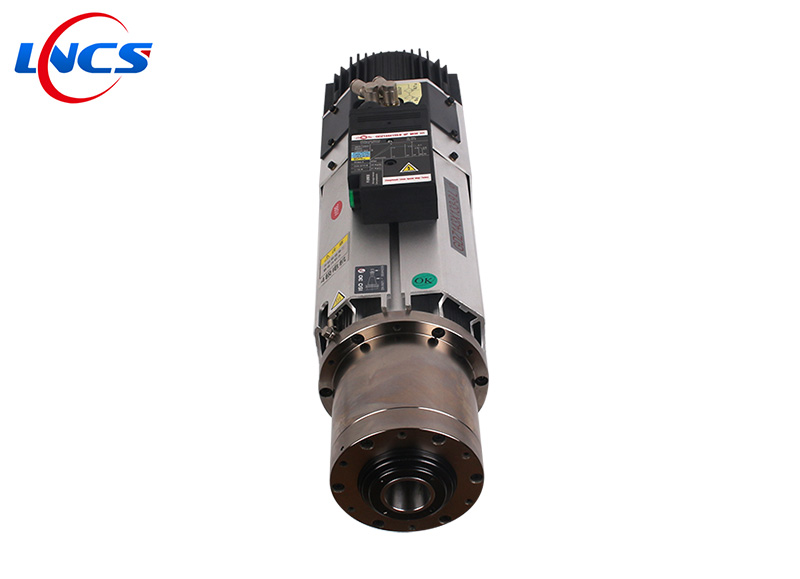

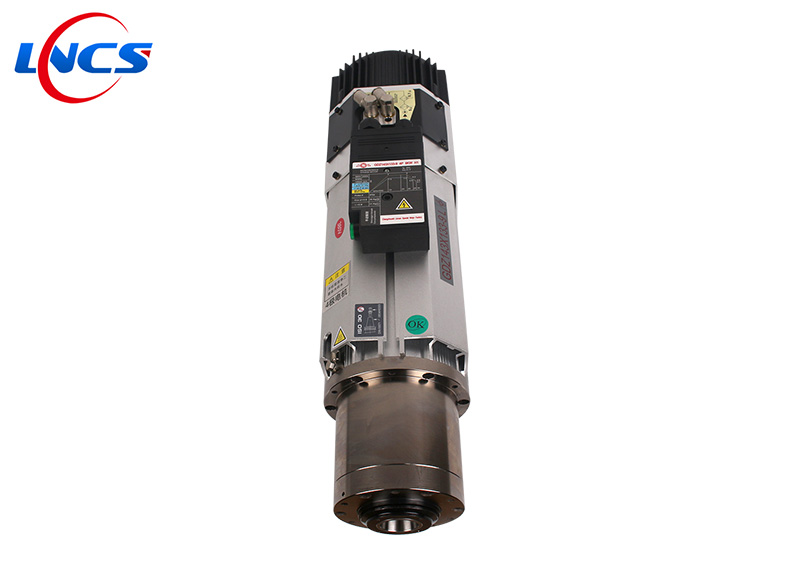

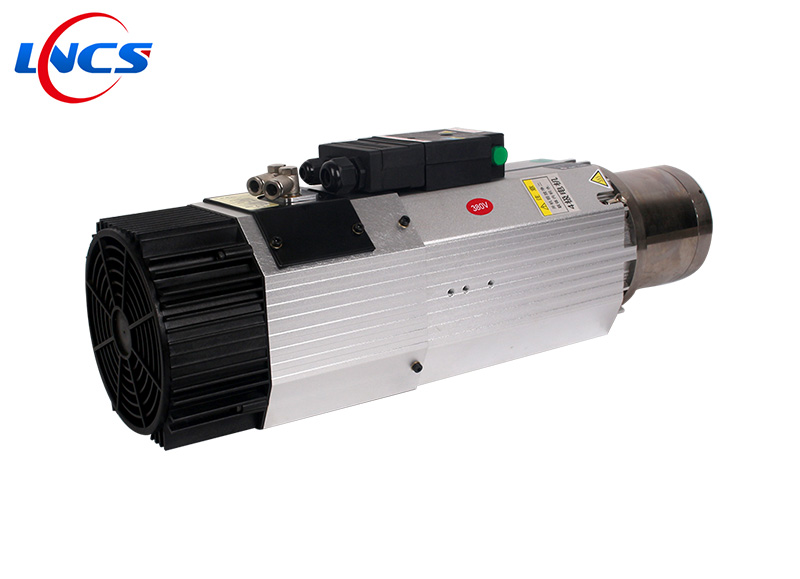

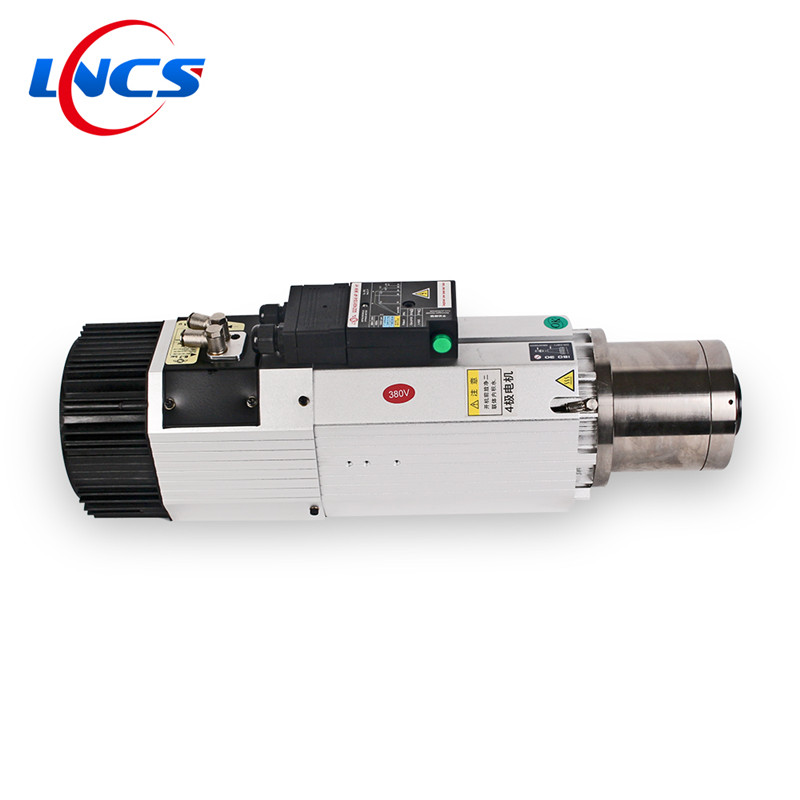

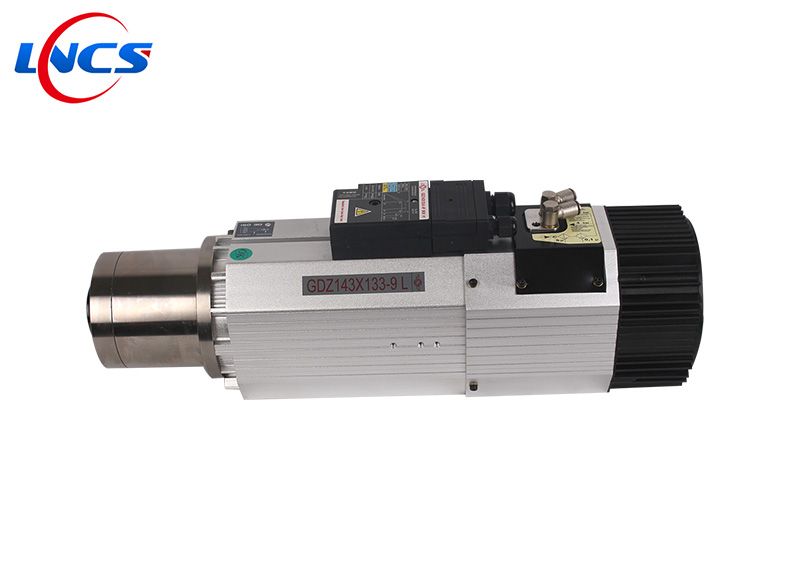

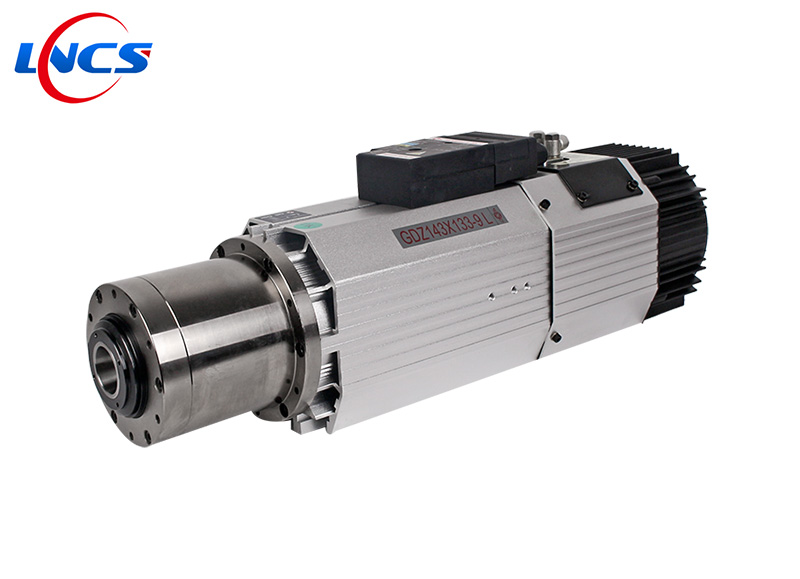

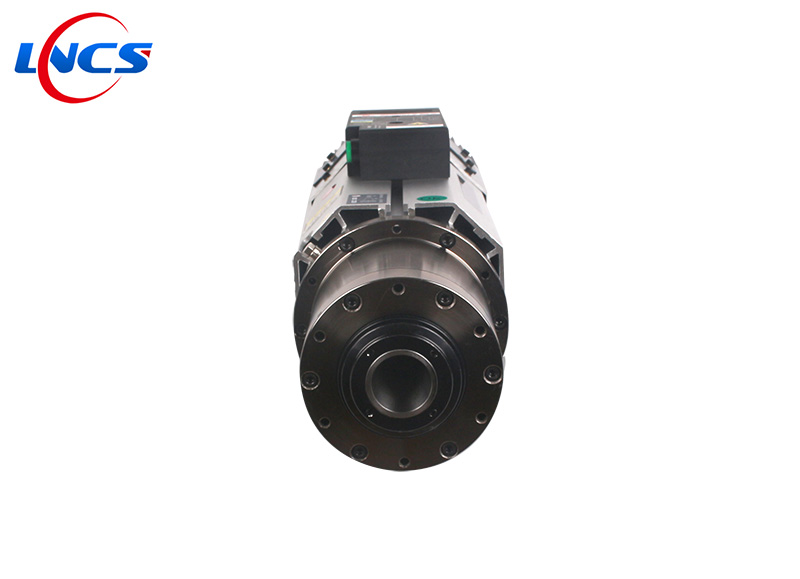

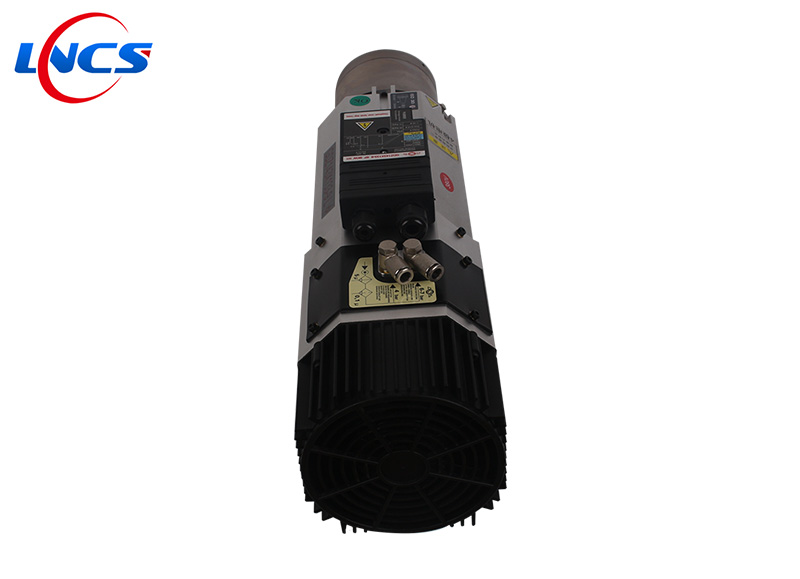

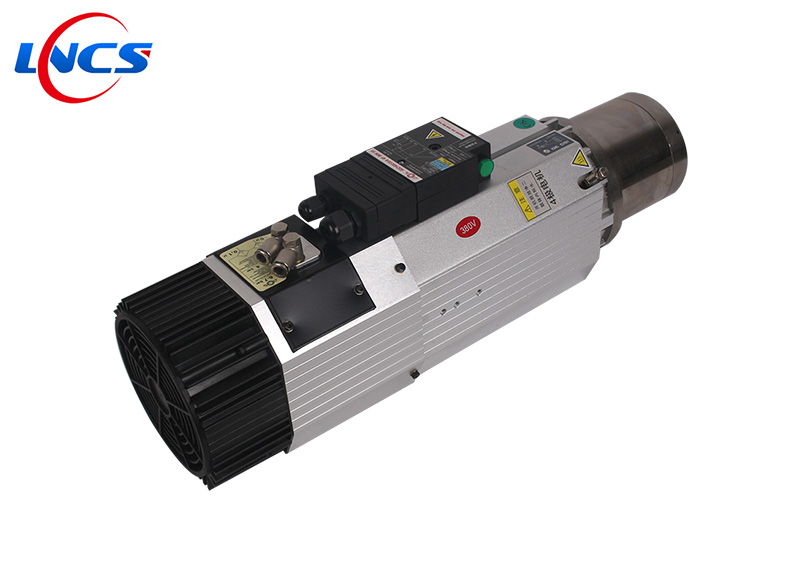

GDZ143133-9.0 9KW ATC spindle motor

    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor
    • GDZ143133-9.0 9KW ATC spindle motor

Product Details



Model No

GDZ143*133-9.0

Brand Name

CHANGSHENG

Power

9.0KW

Speed(R/Min)

24000RPM

Frequency

800HZ

Voltage

380V

Current

18.0A

Collet

ISO30

Lubrication

Grease

Cooling Type

Air Cooling

Bearing Type 2*7008+2*7006

Warranty Period

Bearings for six month, other parts for one year

Application

Be used in internal and external grinding, precision engraving, CNC drilling, milling equipments, edge bander and so on.

Certification

ISO9001, CE, SGS,  ROHS
