- More than 20 Years
Of Electric Spindle Production Experience

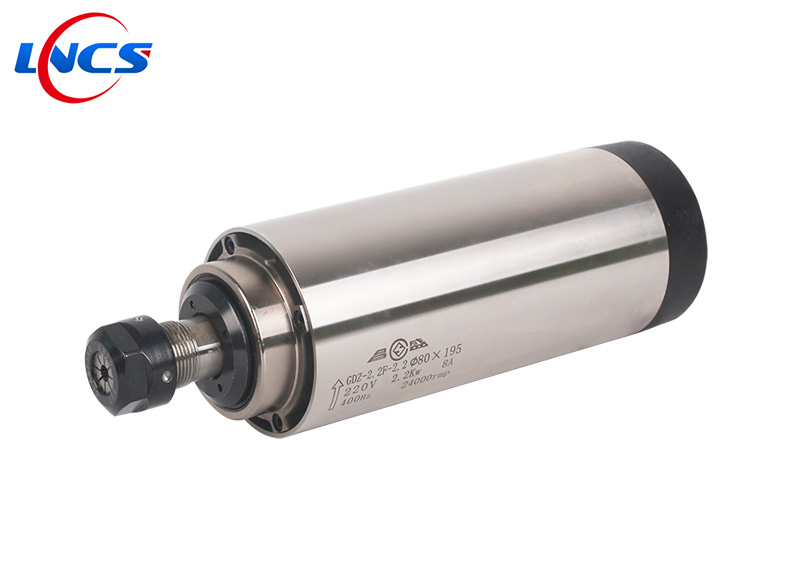

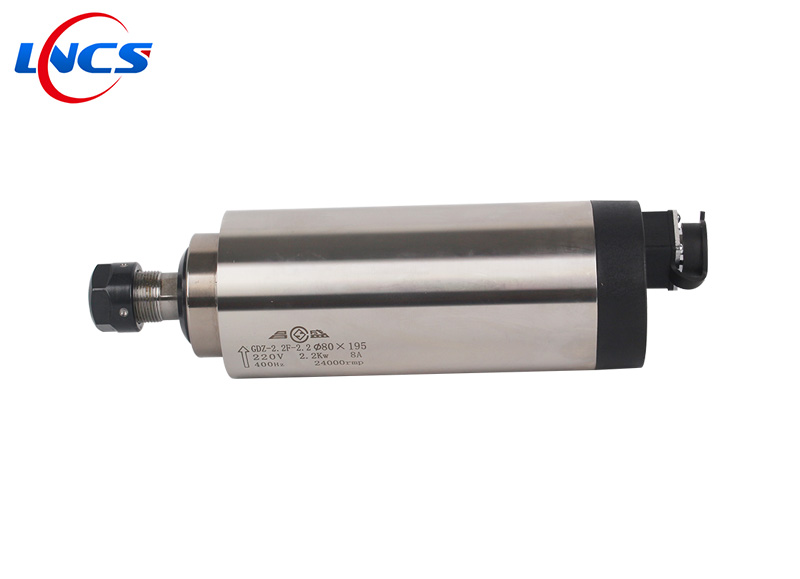

Model No | GDZ80/2.2F |
Brand Name | CHANGSHENG |
Power | 2.2KW |
Speed(R/Min) | 24000RPM |
Frequency | 400HZ |
Voltage | 220V |
Current | 5.0A |
Collet | ER16/ER20 |
Lubrication | Grease |
Cooling Type | Air Cooling |
| Bearing Type | 2*7004;2*7002+2*7005;2*7002 |
Weight | 3.2KG |
Warranty Period | Bearings for six month, other parts for one year |
Application | Be used in internal and external grinding, precision engraving, CNC drilling, milling equipments, edge bander and so on. |
Certification | ISO9001, CE, SGS, ROHS |
