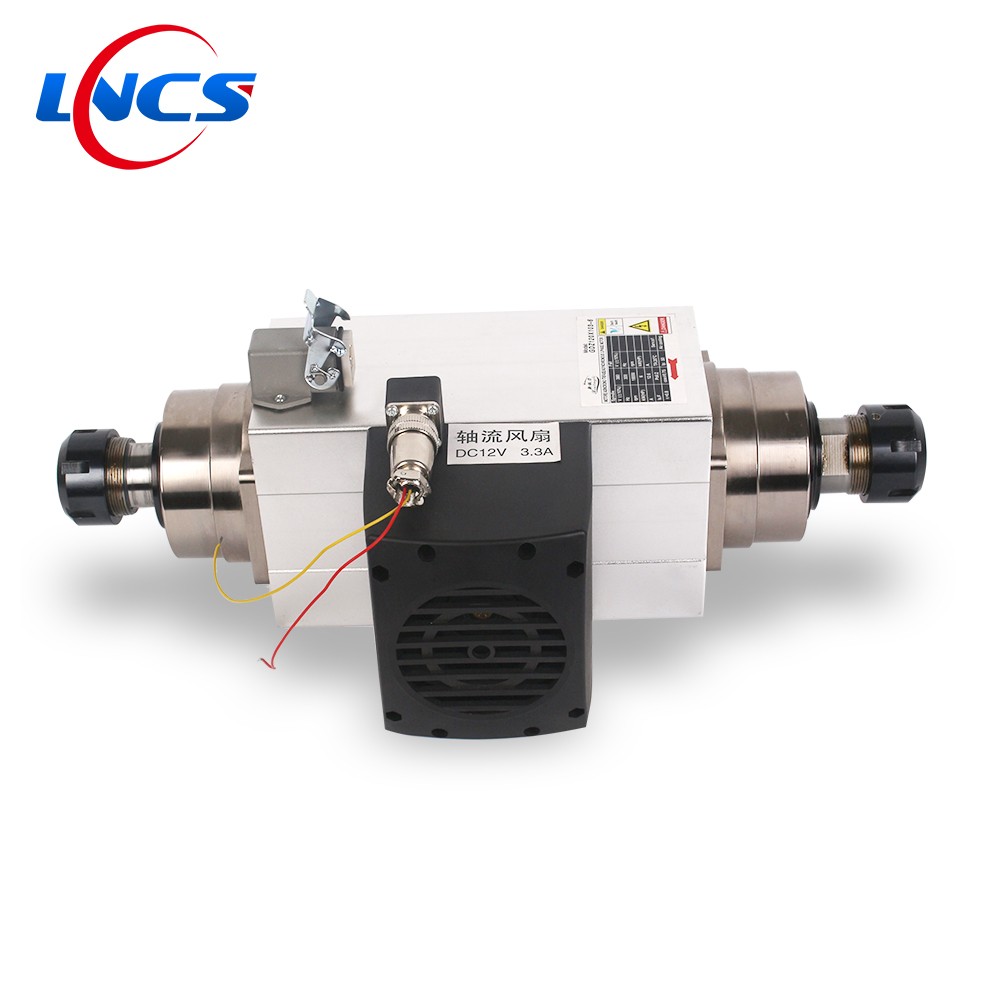

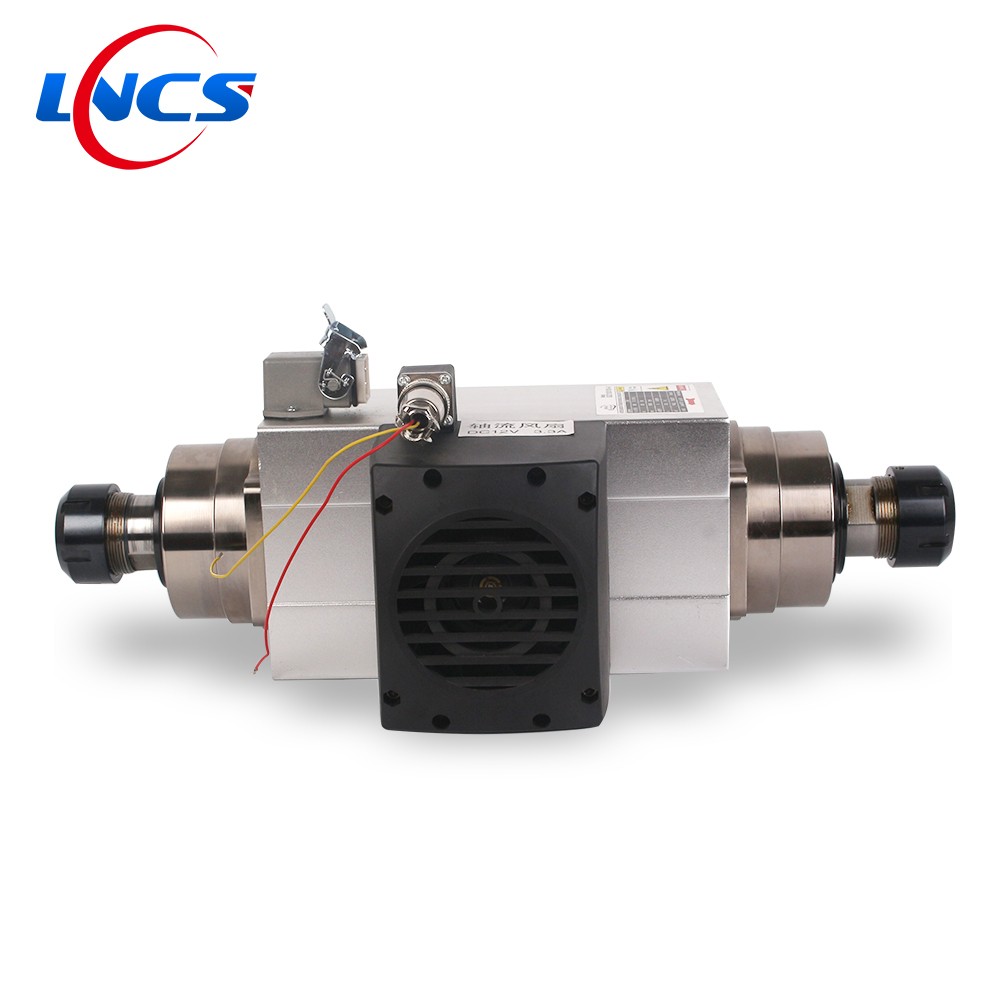

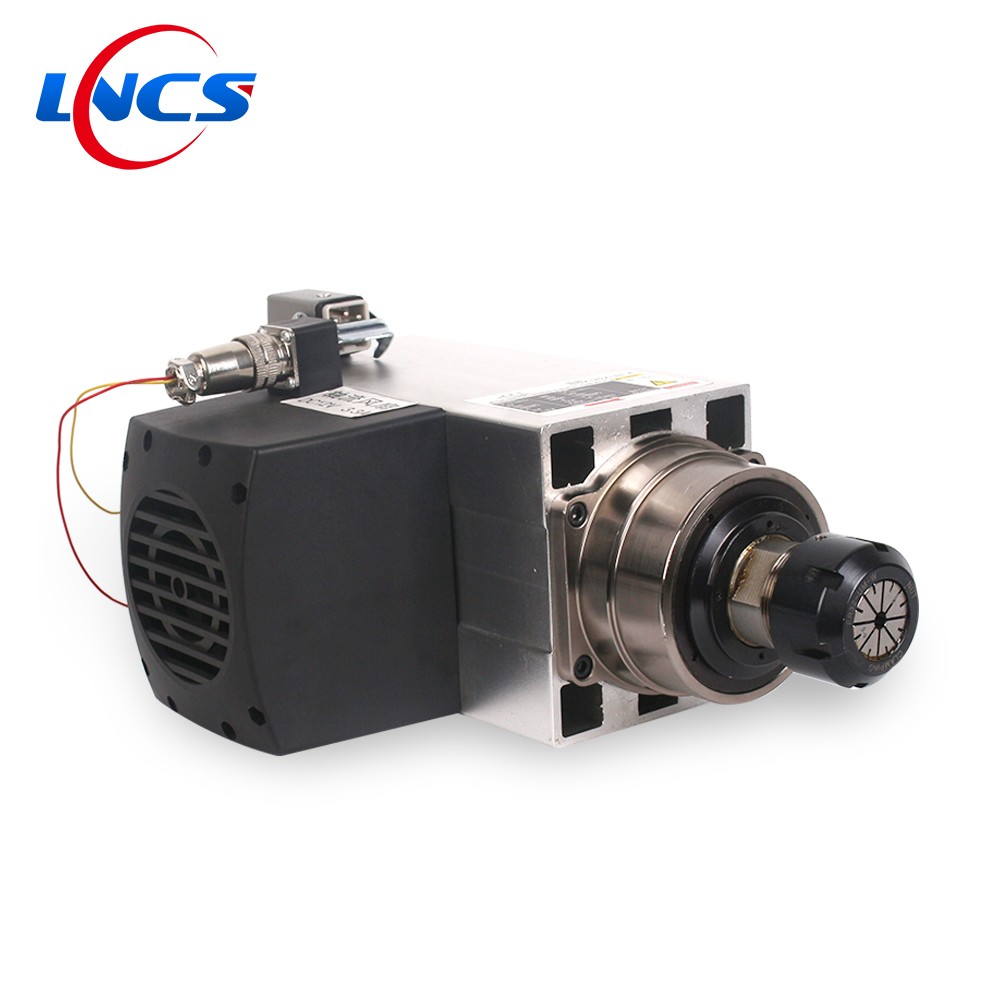

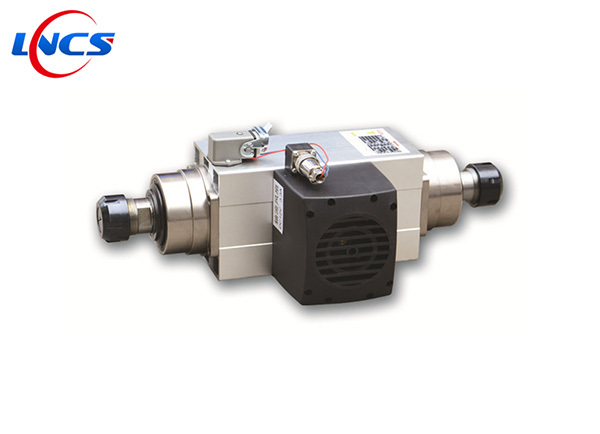

GDZ9382-3.5D 3.5kw double head electric spindle

    • GDZ9382-3.5D 3.5kw double head electric spindle
    • GDZ9382-3.5D 3.5kw double head electric spindle
    • GDZ9382-3.5D 3.5kw double head electric spindle
    • GDZ9382-3.5D 3.5kw double head electric spindle
    • GDZ9382-3.5D 3.5kw double head electric spindle

Product Details


Model No

GDZ93*82-3.5D

Brand Name

CHANGSHENG

Power

3.5KW

Speed(R/Min)

18000RPM

Voltage380V
Current8.8A

Frequency

300HZ

ColletER25

Lubrication

Grease

Cooling Type

Air Cooling

Warranty Period

Bearings for six month, other parts for one year

Application

Be used in internal and external grinding, precision engraving, CNC drilling, milling equipments, edge bander and so on.

Certification

ISO9001, CE, SGS,  ROHS
